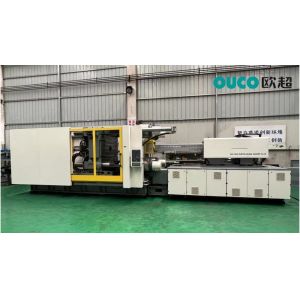

Two-Platen High Injection Molding Capacity Machine CWI-2100S III
OUCO CWI series Two-Platen Large Injection Molding Machine For Deep Cavity Products, like Home Appliances, Car Parts, Outdoor Dustbin, Plastic Pallet, Plastic Crate, etc. Clamping Force – 480~3500 (Ton).
Product Advantages
Saving More Space – Small footprint, bigger mold carrying capacity.
Saving More Power – Servo system configuration, more energy-saving ability.
High Precision – Less production flash.
Lower Noise – Small hydraulic impact, lower noise and oil consumption.
More Automation – Accurate mold positioning meets the needs of automatic pickup and insert.
Longer Lifetime – Even mold force insures long service life.
High Rigidity Slider – With better orientation and parallelism, can carry heavier molds.
Step-less Adjustment – Ensures the accurate and stable clamping force.
High Rigidity Clamping Frame – Makes the whole machine running more smoothly.
High Precision Linear Guide – Faster injection response and accurate positioning.
Variety Of Screw Available – Adapts to different types of products.
Higher Standard Configuration – With 12″ colorful display screen, CPU memory upgrade to 1.4G.
Parameters
| MODEL | CWI-2100S III |
| CLAMPING UNIT | clamping force (kN) | 21000 |
| Tie bar distance W×L (mm) | 1800*1600 |
| Max.Daylight(mm) | 3700 |
| Max. mold thickness (mm) | 1700 |
| Min. mold thickness(mm) | 800 |
| Platen Dimensions W×L (mm) | 2620*2420 |
| Ejector Stroke(mm) | 400 |
| Ejector Force(Kn) | 406 |
| Ejector Quantily | 33 |
| | Injection unit | 18000I | 30000I |
| Injection Unit | Screw Diameter(mm) | 130 | 140 | 150 | 160 |
| Screw L/D ratio | 22.6 | 21 | 22.4 | 21 |
| Theoretical injection volume (cm3) | 8821 | 10231 | 15890 | 18080 |
| Shot Weight (PS) g | 8027 | 9310 | 14619 | 16634 |
| Injection Pressure(MPa) | 203 | 175 | 193 | 176 |
| Injection Speed (mm/s) | 98 | 77 |
| Injection Rate (cm3/s) | 1034.0 | 1513.0 | 1364.0 | 1533.0 |
| Screw Speed (rpm) | 10-166 | 10-110 |
| Other | Motor Power (Kw) | 50+50+50+50+7.5 |
| pump capacity(L/min) | 2000 |
| Heater Power (Kw) | 100 | 120 |
| Machine Weight (kg) | 110000 |
| Machine size L×W×H (mm) | 14500x4200x3530 |
